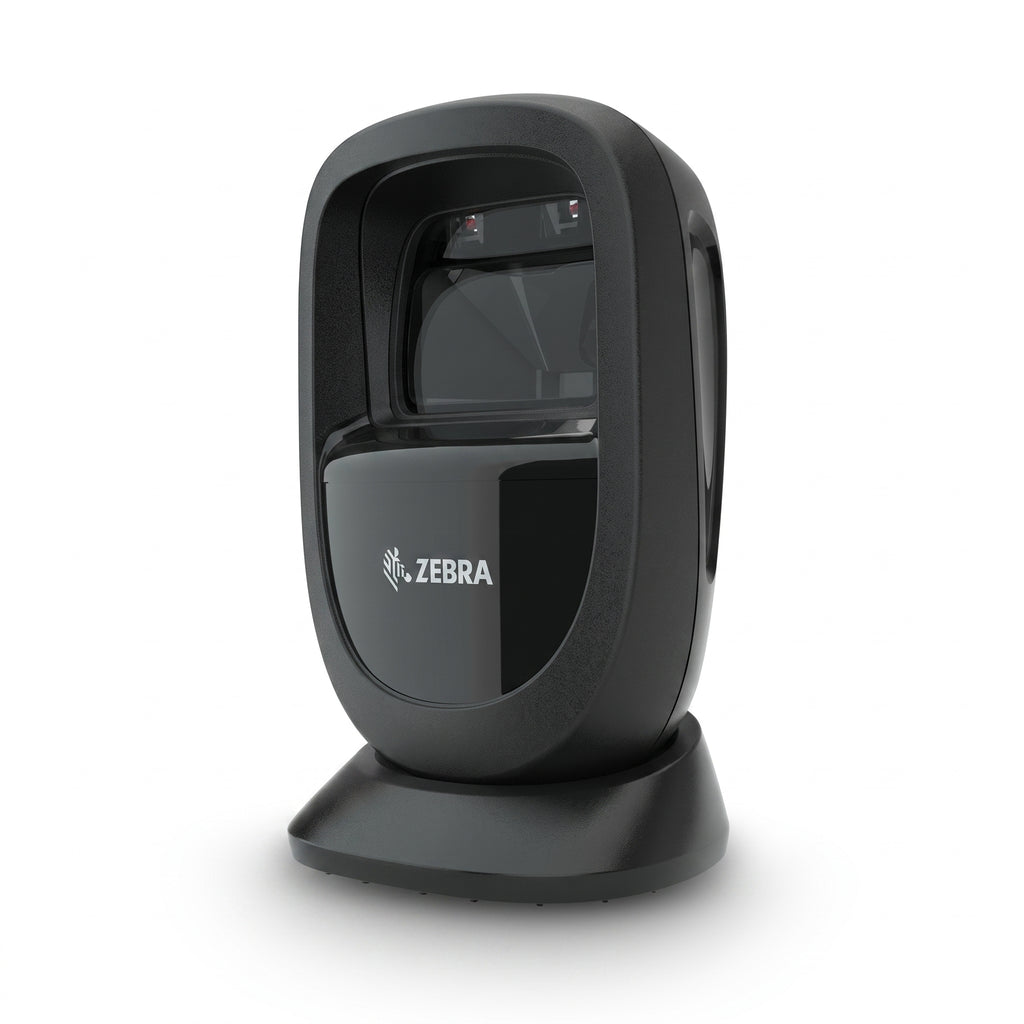

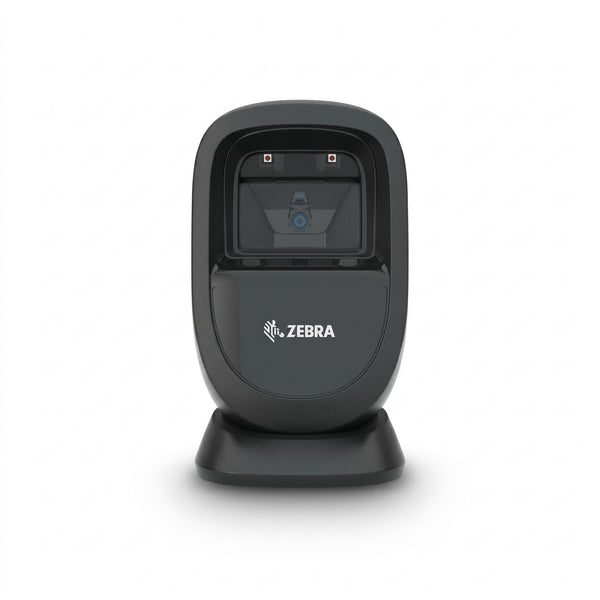

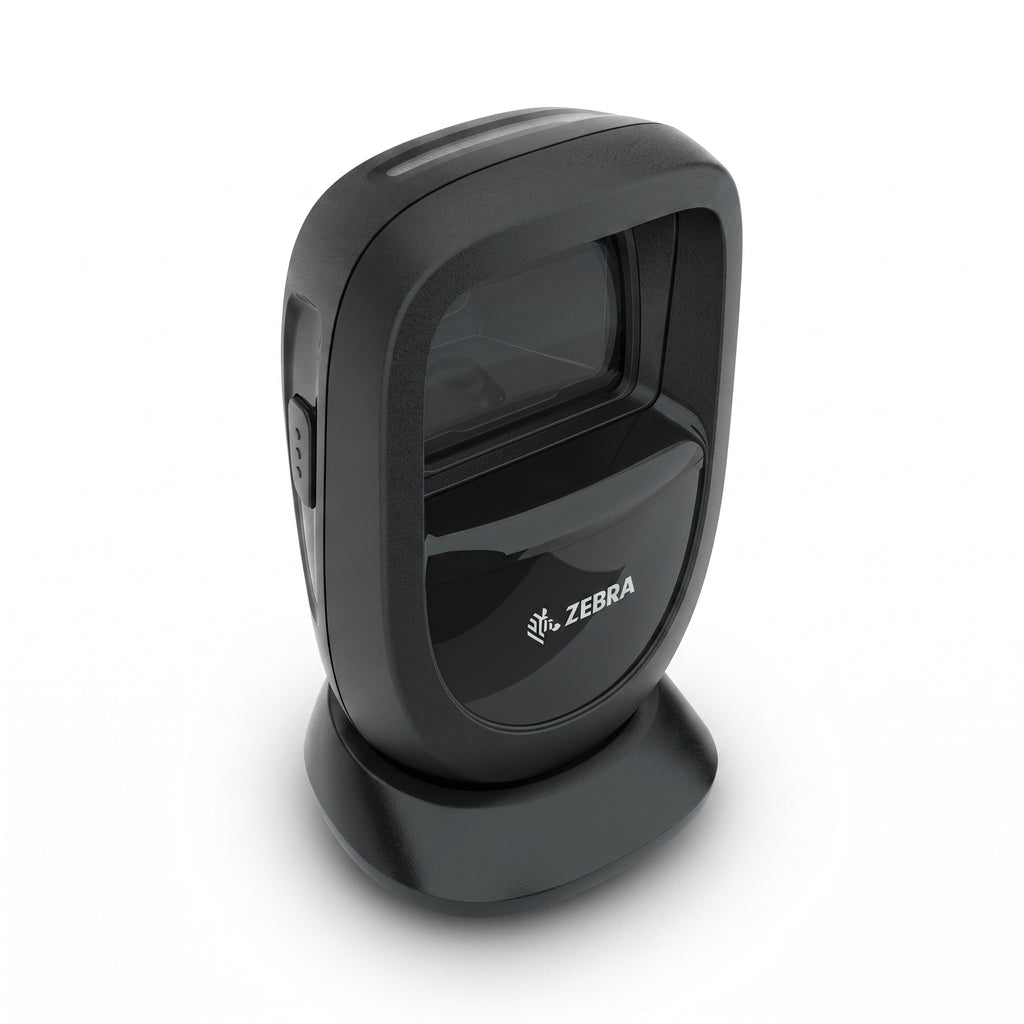

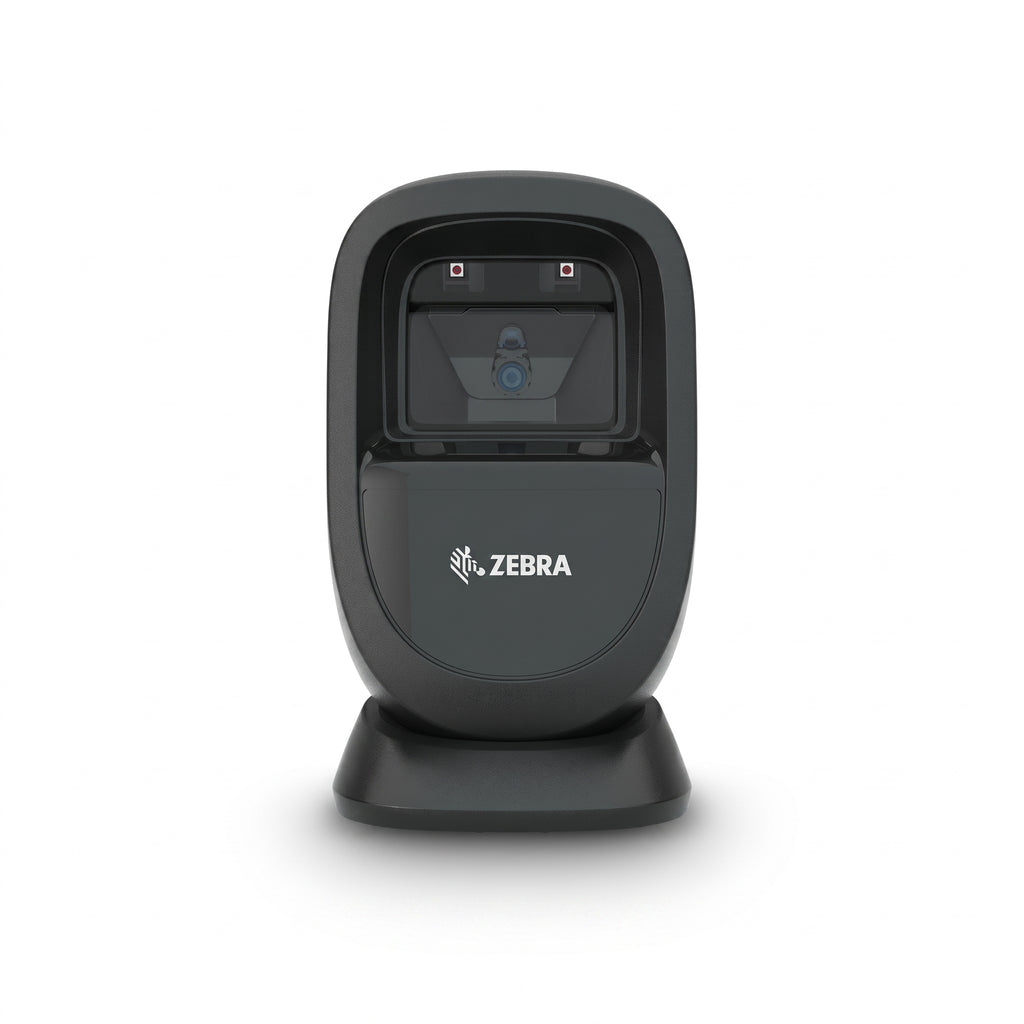

Zebra DS9308 — Hands-Free Barcode Scanner

• Fast & Reliable 1D/2D Scanning
  High-performance hands-free scanner with 1280 × 800 pixel image sensor.
  Captures both 1D and 2D barcodes from paper labels and mobile phone screens.
  Supports high-density (HD) barcodes used in specialty retail and electronic manufacturing.
  Supports a wide range of 1D and 2D symbologies, including UPC/EAN, Code 39, Code 128, PDF417, Data Matrix and QR Code.
  Presentation scanning speed of up to 120 in. / 305 cm per second for a 13 mil UPC in optimized mode.

• Compact Hands-Free Design
  Integrated adjustable stand provides a compact footprint and allows convenient hands-free presentation scanning.
  Four scanning positions are available through the stand's ratcheting mechanism.
  Built for continuous everyday use in retail and point-of-sale environments.
  LED indicators and an adjustable beeper provide visual and audible scanning feedback.

• Durable for Retail Environments
  IP52 environmental sealing helps protect the scanner from dust and liquid exposure.
  Designed to withstand multiple drops from 1.5 m onto concrete.
  Designed to withstand 1,000 tumbles in a 0.5 m tumbler.
  Operates in temperatures from 0°C to 50°C.

• Simple Plug-and-Play Connectivity
  Corded scanner with USB connectivity.
  USB 2.0 Full Speed compliant.
  Host-powered operation at 4.5–5.5 VDC is supported.
  Supported host interfaces also include RS232, Keyboard Wedge and TGCS (IBM) 46XX over RS485.
  Compatible with Clover Station Duo, Station Solo and Mini.

Zebra DS9308 Tech Specs

Product Model
DS9308

Product Type
Hands-Free 1D/2D Barcode Scanner

Scanning Technology
Area Imager

Image Sensor
1280 × 800 pixels

Barcode Support
1D and 2D

Supported 1D Symbologies
Code 39
Code 128
Code 93
Codabar / NW7
Code 11
MSI Plessey
UPC/EAN
Interleaved 2 of 5
Korean 3 of 5
GS1 DataBar
Base 32 (Italian Pharma)

Supported 2D Symbologies
PDF417
Micro PDF417
Composite Codes
TLC-39
Aztec
Data Matrix
MaxiCode
QR Code
Micro QR
Han Xin
Postal Codes
SecurPharm
DotCode
Dotted DataMatrix

OCR Support
OCR-A
OCR-B
MICR
US Currency

Digimarc
Supported on specific models

Minimum Element Resolution
Code 39: 3 mil
Code 128: 3 mil
QR Code: 5 mil
Data Matrix: 5 mil

Scan Speed
Up to 120 in. / 305 cm per second for 13 mil UPC in optimized mode

Field of View
52° H × 33° V nominal

Aiming Pattern
Amber 617 nm LED

Illumination
660 nm Hyper Red LED

Connectivity
USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

USB Standard
USB 2.0 Full Speed

Power
4.5–5.5 VDC
Host powered or external power supply

Color
Midnight Black / Alpine White

Dimensions (H × W × D)
145 × 86 × 83 mm

Weight
318 g

Operating Temperature
0°C to 50°C

Storage Temperature
-40°C to 70°C

Humidity
5%–95% RH, non-condensing

Environmental Sealing
IP52

Drop Resistance
1.5 m onto concrete

Tumble Resistance
1,000 tumbles at 0.5 m

Hands-Free Operation
Yes — integrated adjustable stand

Clover Compatibility
Clover Station Duo
Clover Station Solo
Clover Mini
